HCZ系列化工流程泵 / HCZ Series
用途
HCZ泵的用途，主要用于石油、化工、造紙、制糖、醫藥、發電廠、煉鋼廠、煉油廠等清潔介質的輸送。

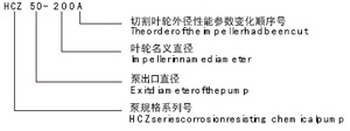

型號說明
規格 | 性能參數 | 配用電機（按照介質比重） | 汽蝕余量 m req | 進口法蘭直徑 | |||||||
轉速 r/min | 葉輪型式 | 流 (m3/h) | 揚程 (m) | 效率 % | 軸功率 kw | γ=1.0 | γ=1.35 | γ=1.84 | |||
32-160 | 1450 | A | 11 | 8 | 49 | 0.49 | Y801-4/0.55 | Y90S-4/1.1 | Y90S-4/1.1 | 1.5 | 50 |
B | 10 | 7 | 49 | 0.39 | Y801-4/0.55 | Y90S-4/1.1 | Y90S-4/1.1 | ||||
C | 9 | 6 | 49 | 0.30 | Y801-4/0.55 | Y802-4/0.75 | Y802-4/0.75 | ||||
D | 6 | 4 | 49 | 0.13 | Y801-4/0.55 | Y802-4/0.75 | Y802-4/0.75 | ||||
E | 6 | 3 | 49 | 0.1 | Y801-4/0.55 | Y801-4/0.55 | Y801-4/0.55 | ||||
2900 | A | 20 | 33 | 60 | 2.99 | Y112M-2/4 | Y132S1-2/5.5 | Y132S2-2/7.5 | 2.0 | 50 | |
B | 17 | 25 | 60 | 1.93 | Y90L-2/2.2 | Y100L-2/3 | Y112M-2/4 | ||||
C | 15 | 18 | 60 | 1.23 | Y90S-2/1.5 | Y90L-2/2.2 | Y100L-2/3 | ||||
D | 13 | 12 | 60 | 0.71 | Y802-2/1.1 | Y90S-2/1.5 | Y90S-2/1.5 | ||||
E | 13 | 11 | 60 | 0.65 | Y801-2/0.75 | Y802-2/1.1 | Y90S-2/1.5 | ||||
32-200 | 1450 | A | 10 | 13 | 47 | 0.75 | Y90S-4/1.1 | Y90L-4/1.5 | Y90L-4/1.5 | 1.0 | 50 |
B | 9 | 12 | 47 | 0.63 | Y802-4/0.75 | Y90L-4/1.5 | Y90L-4/1.5 | ||||
C | 8 | 10 | 47 | 0.46 | Y802-4/0.75 | Y90S-4/1.1 | Y90S-4/1.1 | ||||
D | 8 | 8 | 47 | 0.37 | Y801-4/0.55 | Y802-4/0.75 | Y90S-4/1.1 | ||||
2900 | A | 20 | 50 | 51 | 5.34 | Y132S2-2/7.5 | Y132S2-2/7.5 | Y160M1-2/11 | 2.0 | 50 | |
B | 18 | 48 | 51 | 4.61 | Y132S1-2/5.5 | Y132S2-2/7.5 | Y160M1-2/11 | ||||
C | 16 | 40 | 51 | 3.42 | Y112M-2/4 | Y132S1-2/5.5 | Y132S2-2/7.5 | ||||
D | 15 | 30 | 51 | 2.40 | Y100L-2/3 | Y112M-2/4 | Y132S1-2/5.5 | ||||
32-250 | 1450 | A | 11 | 19 | 37 | 1.54 | Y100L1-4/2.2 | Y100L1-4/2.2 | Y100L2-4/3 | 0.9 | 50 |
B | 10 | 18 | 37 | 1.32 | Y90L-4/1.5 | Y100L1-4/2.2 | Y100L2-4/3 | ||||
C | 9 | 14 | 37 | 0.92 | Y90S-4/1.1 | Y90L-4/1.5 | Y100L1-4/2.2 | ||||
D | 8 | 10 | 37 | 0.59 | Y802-4/0.75 | Y90S-4/1.1 | Y90L-4/1.5 | ||||
2900 | A | 20 | 81 | 40 | 11.03 | Y160M2-2/15 | Y160M2-2/15 | Y180M-2/22 | 2.1 | 50 | |
B | 20 | 71 | 40 | 9.66 | Y160M1-2/11 | Y160M2-2/15 | Y160L-2/18.5 | ||||
C | 18 | 61 | 40 | 7.47 | Y160M1-2/11 | Y160M1-2/11 | Y160M2-2/15 | ||||
D | 15 | 46 | 40 | 4.70 | Y132S1-2/5.5 | Y132S2-2/7.5 | Y160M1-2/11 | ||||
