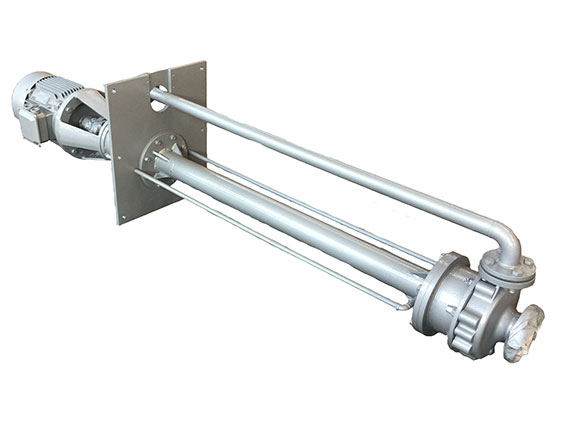

HY系列化工液下泵 / HY Series

HY化工液下泵性能參數表2

發布時間:2019-10-26 瀏覽次數：2405

規格 Pump Model	性能參數								配用電機(按照介質比重)
	轉速 Speed	葉輪型式	流量范圍	揚程范圍	流量	揚程	效率	軸功率	配用電機(按照介質比重)
	轉速 Speed	葉輪型式	Capacity (m3/h)	Head (m)	Capacity (m3/h)	Head (m)	Efficiency (%)	Input Power (kw)	γ=1.0	γ=1.2	γ=1.5
80-50-160	1450	A	24 -36	5.6 -8.7	30	7	70	0.82	Y90L-4/1.5	Y100L1-4/2.2	Y100L2-4/3
		B	20.8 -31.2	4.8 -7.6	26	6	70	0.61	Y90S-4/1.1	Y90S-4/1.1	Y90L-4/1.5
		C	19.2 -28.8	4 -7.1	24	5	70	0.47	Y90S-4/1.1	Y90S-4/1.1	Y90L-4/1.5
		D	16 -24	3.2 -5	20	4	70	0.31	Y90S-4/1.1	Y90S-4/1.1	Y90S-4/1.1
	2900	A	44 -66	25.6 -35	55	32	73	6.56	Y160M1-2/11	Y160M1-2/11	Y160M2-2/15
		B	40 -60	22.4 -30	50	28	73	5.22	Y132S2-2/7.5	Y132S2-2/7.5	Y160M2-2/15
		C	36.8 -55.2	19.2 -26.8	46	24	73	4.12	Y132S1-2/5.5	Y132S2-2/7.5	Y160M1-2/11
		D	32 -48	12.8 -17.5	40	16	73	2.39	Y132S1-2/5.5	Y132S1-2/5.5	Y132S1-2/5.5
80-50-200	1450	A	27.2 -40.8	10.4 -14.3	34	13	70	1.72	Y100L2-4/3	Y112M-4/4	Y112M-4/4
		B	27.2 -40.8	8.8 -13	34	11	70	1.45	Y100L1-4/2.2	Y100L2-4/3	Y112M-4/4
		C	24 -36	7.2 -10	30	9	70	1.05	Y90L-4/1.5	Y100L1-4/2.2	Y100L2-4/3
		D	19.2 -28.8	5.6 -7.8	24	7	70	0.65	Y90S-4/1.1	Y90L-4/1.5	Y100L1-4/2.2
	2900	A	52 -78	43 -59	65	54	72	13.27	Y160M2-2/15	160L-2/18.5	Y200L1-2/30
		B	52 -78	36 -51	65	46	72	11.30	Y160M2-2/15	160L-2/18.5	Y180M-2/22
		C	40 -60	30 -40	50	37	72	6.99	Y132S2-2/7.5	Y160M1-2/11	Y160M2-2/15
		D	32 -48	23 -32	40	29	72	4.39	Y132S1-2/5.5	Y132S2-2/7.5	Y160M1-2/11
80-50-250	1450	A	27.2 -40.8	16 -22	34	20	59	3.14	Y112M-4/4	Y132S-4/5.5	Y132SM--4/7.5
		B	24 -36	15 -21	30	19	59	2.63	Y100L2-4/3	Y112M-4/4	Y132S-4/5.5
		C	20.8 -31.2	12 -16.5	26	15	59	1.80	Y100L1-4/2.2	Y100L2-4/3	Y112M-4/4
		D	19.2 -28.8	8.8 -12.6	24	11	59	1.22	Y90L-4/1.5	Y100L1-4/2.2	Y100L2-4/3
	2900	A	52 -78	64.8 -85	65	81	64	22.39	Y200L1-2/30	Y200L2-2/37	Y225M-2/45
		B	48 -72	60.8 -80	60	76	64	19.40	Y180M-2/22	Y200L1-2/30	Y200L2-2/37
		C	44 -66	51.2 -70	55	64	64	14.97	Y160M2-2/15	Y180M-2/22	Y200L1-2/30
		D	36 -54	44.8 -62	45	56	64	10.72	Y160M2-2/15	Y160M2-2/15	Y180M-2/22
80-50-315	1450	A	33.6 -50.4	28.8 -38	42	36	58	7.10	Y132M-4/7.5	Y160M-4/11	Y160L-4/15
		B	33.6 -50.4	25.6 -35	42	32	58	6.31	Y132M-4/7.5	Y160M-4/11	Y160L-4/15
		C	32 -48	20.8 -28	40	26	58	4.88	Y132S-4/5.5	Y132M-4/7.5	Y160M-4/11
		D	28.8 -43.2	16 -22	36	20	58	3.38	Y112M-4/4	Y132S-4/5.5	Y132M-4/7.5
	2900	A	64 -96	112 -142	80	140	60	50.81	Y250M-2/55	Y280S-2/75	Y280M-2/90
		B	60 -90	108 -132	75	135	60	45.94	Y250M-2/55	Y280S-2/75	Y280M-2/90
		C	56 -84	88 -121	70	110	60	34.94	Y200L2-2/37	Y250M-2/55	Y280S-2/75
		D	52 -78	68 -93.5	65	85	60	25.07	Y200L1-2/30	Y200L2-2/37	Y225M-2/45
100-65-160	1450	A	40 -60	6.4 -8.8	50	8	68	1.60	Y100L1-4/2.2	Y100L2-4/3	Y112M-4/4
		B	38.4 -57.6	5.6 -7.7	48	7	68	1.35	Y90L-4/1.5	Y100L1-4/2.2	Y100L2-4/3
		C	36.8 -55.2	4.8 -6.6	46	6	68	1.10	Y90L-4/1.5	Y100L1-4/2.2	Y100L2-4/3
		D	30.4 -45.6	3.2 -4.4	38	4	68	0.61	Y90S-4/1.1	Y90L-4/1.5	Y100L1-4/2.2
	2900	A	80 -120	25.6 -35	100	32	74	11.77	Y160M2-2/15	Y160L-2/18.5	Y180M-2/22
		B	72 -108	25.6 -35	90	32	74	10.59	Y160M2-2/15	Y160M2-2/15	Y160L-2/18.5
		C	72 -108	19.2 -26.8	90	24	74	7.95	Y160M1-2/11	Y160M2-2/15	Y160M2-2/15
		D	64 -96	11.2 -15.6	80	14	74	4.12	Y132S1-2/5.5	Y132S2-2/7.5	Y160M1-2/11
100-65-200	1450	A	40 -60	10.4 -14.3	50	13	73	2.42	Y100L2-4/3	Y112M-4/4	Y132S-4/5.5
		B	36.8 -55.2	9.6 -13.2	46	12	73	2.06	Y100L1-4/2.2	Y100L2-4/3	Y112M-4/4
		C	33.6 -50.4	8-11	42	10	73	1.57	Y100L2-4/3	Y100L2-4/3	Y112M-4/4
		D	28.8 -43.2	5.6 -7.7	36	7	73	0.94	Y90L-4/1.5	Y100L1-4/2.2	Y100L2-4/3
	2900	A	80 -120	43.2 -57	100	54	73	20.14	Y180M-2/22	Y200L1-2/30	Y200L2-2/37
		B	72 -108	40 -55	90	50	73	16.78	Y180M-2/22	Y200L1-2/30	Y200L1-2/30
		C	72 -108	32 -44	90	40	73	13.42	160L-2/18.5	Y180M-2/22	Y200L1-2/30
		D	56 -84	24 -33	70	30	73	7.83	Y160M1-2/11	Y160M2-2/15	160L-2/18.5
100-65-250	1450	A	43.2 -64.8	16.8 -23	54	21	67	4.61	Y132S-4/5.5	Y132M-4/7.5	Y160M-4/11
		B	40 -60	16 -22	50	20	67	4.06	Y132S-4/5.5	Y132M-4/7.5	Y132M-4/7.5
		C	36.8 -55.2	12.8 -17	46	16	67	2.99	Y112M-4/4	Y132S-4/5.5	Y132M-4/7.5
		D	32 -48	8-11	40	10	67	1.63	Y90L-4/2.2	Y100L-4/3	Y112M-4/4
	2900	A	92 -138	68 -90	115	85	71	37.48	Y225M-2/45	Y250M-2/55	Y280S-2/75
		B	92 -138	60 -82.5	115	75	71	33.07	Y200L2-2/37	Y225M-2/45	Y280S-2/75
		C	80 -120	52 -71.5	100	65	71	24.92	Y200L1-2/30	Y200L2-2/37	Y225M-2/45
		D	64 -96	40 -55	80	50	71	15.34	160L-2/18.5	Y180M-2/22	Y200L1-2/30
100-65-315	1450	A	51.2 -76.8	25.6 -35.2	64	32	62	8.99	Y160M-4/11	Y160L-4/15	Y180M-4/18.5
		B	48.8 -73.2	24 -33	61	30	62	8.03	Y160M-4/11	Y160M-4/11	Y160M-4/15
		C	44.8 -67.2	22.4 -30.8	56	28	62	6.88	Y132M-4/7.5	Y160M-4/11	Y160L-4/15
		D	43.2 -64.8	19.2 -26.4	54	24	62	5.69	Y132M-4/7.5	Y160M-4/11	Y160M-4/11
		E	40 -60	16 -22	50	20	62	4.39	Y132S-4/5.5	Y132M-4/7.5	Y160M-4/11
		F	33.6 -50.4	12.8 -17.6	42	16	62	2.95	Y112M-4/4	Y132S-4/5.5	Y132M-4/ 7.5
	2900	A	108 -162	108 -141	135	135	66	75.17	Y280M-2/90	Y315S-2/110	Y315M2-2/160
		B	104 -156	100 -133	130	125	66	67.02	Y280S-2/75	Y280M-2/90	Y315M1-2/132
		C	92 -138	92 -125	115	115	66	54.55	Y250M-2/55	Y280S-2/75	Y315S-2/110
		D	80 -132	88 -121	110	110	66	49.91	Y250M-2/55	Y280S-2/75	Y280M-2/90
		E	72 -108	68 -93.5	90	85	66	31.55	Y200L2-2/37	Y225M-2/45	Y250M-2/55
		F	60 -90	56 -77	75	70	66	21.65	Y180M-2/22	Y200L1-2/30	Y225M-2/45
