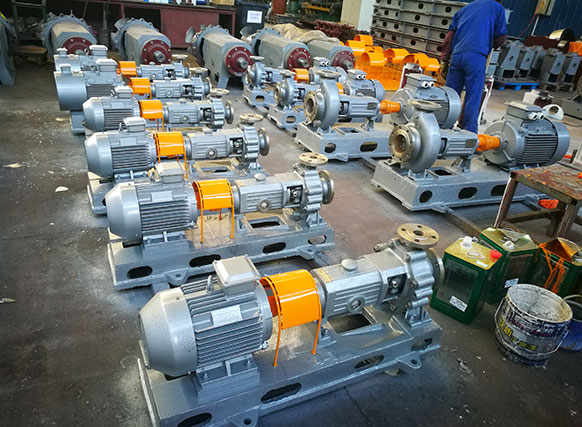

HCZ系列化工流程泵 / HCZ Series
規格 | 性能參數 | 配用電機（按照介質比重） | 汽蝕余量 m req | 進口法蘭直徑 | |||||||
轉速 r/min | 葉輪型式 | 流量 (m3/h) | 揚程 (m) | 效率 % | 軸功率 kw | γ=1.0 | γ=1.35 | γ=1.84 | |||
65-250 | 1450 | A | 54 | 21 | 67 | 4.61 | Y132S-4/5.5 | Y132M-4/7.5 | Y160M-4/11 | 0.9 | 100 |
B | 50 | 20 | 67 | 4.06 | Y132S-4/5.5 | Y132M-4/7.5 | Y160M-4/11 | ||||
C | 46 | 16 | 67 | 2.99 | Y100L2-4/3 | Y132S-4/5.5 | Y132M-4/7.5 | ||||
D | 40 | 10 | 67 | 1.63 | Y90L-4/2.2 | Y100L-4/3 | Y112M-4/4 | ||||
2900 | A | 115 | 85 | 71 | 37.48 | Y225M-2/45 | Y250M-2/55 | Y280S-2/75 | 3.4 | 100 | |
B | 115 | 75 | 71 | 33.07 | Y200L2-2/37 | Y225M-2/45 | Y280S-2/75 | ||||
C | 100 | 65 | 71 | 24.92 | Y200L1-2/30 | Y200L2-2/37 | Y250M-2/55 | ||||
D | 80 | 50 | 71 | 15.34 | Y160L-2/18.5 | Y180M-2/22 | Y200L-2/30 | ||||
65-315 | 1450 | A | 64 | 32 | 62 | 8.99 | Y160M-4/11 | Y160L-4/15 | Y180M-4/18.5 | 1.3 | 100 |
B | 61 | 30 | 62 | 8.03 | Y160M-4/11 | Y160M-4/11 | Y160M-4/15 | ||||
C | 56 | 28 | 62 | 6.88 | Y132M-4/7.5 | Y160M-4/11 | Y160L-4/15 | ||||
D | 54 | 24 | 62 | 5.69 | Y132M-4/7.5 | Y160M-4/11 | Y160M-4/11 | ||||
E | 50 | 20 | 62 | 4.39 | Y132S-4/5.5 | Y132M-4/7.5 | Y160M-4/11 | ||||
F | 42 | 6 | 62 | 2.95 | Y112M-4/4 | Y132S-4/5.5 | Y132M-4/7.5 | ||||
2900 | A | 135 | 135 | 66 | 75.17 | Y280M-2/90 | Y315S-2/110 | Y315M2-2/160 | 3.6 | 100 | |
B | 130 | 125 | 66 | 67.03 | Y280S-2/75 | Y280M-2/90 | Y315M1-2/132 | ||||
C | 115 | 115 | 66 | 54.55 | Y250M-2/55 | Y280S-2/75 | Y315S-2/110 | ||||
D | 110 | 110 | 66 | 49.9 | Y250M-2/55 | Y280S-2/75 | Y315S-2/110 | ||||
E | 90 | 85 | 66 | 31.55 | Y200L2-2/37 | Y225M-2/45 | Y250M-2/55 | ||||
F | 75 | 70 | 66 | 21.65 | Y180M-2/22 | Y200L1-2/30 | Y225M-2/45 | ||||
80-160 | 1450 | A | 75 | 8 | 70 | 2.331.91 | Y100L2-4/3 | Y112M-4/4 | Y132S-4/5.5 | 2.2 | 125 |
B | 70 | 7 | 70 | 1.91 | Y100L1-4/2.2 | Y100L2-4/3 | Y112M-4/4 | ||||
C | 70 | 5 | 70 | 1.36 | Y190L-4/1.5 | Y100L1-4/2.2 | Y100L2-4/3 | ||||
D | 65 | 4 | 70 | 1.01 | Y90S-4/1.1 | Y90L-4/1.5 | Y100L1-4/2.2 | ||||
2900 | A | 170 | 30 | 76 | 18.27 | Y180M-2/22 | Y200L1-2/30 | Y200L2-2/37 | 2.5 | 125 | |
B | 160 | 26 | 76 | 14.9 | Y160-2/18.5 | Y180M-2/22 | Y200L1-2/30 | ||||
C | 150 | 22 | 76 | 11.82 | Y160M2-2/15 | Y160L-2/18.5 | Y180M-2/22 | ||||
D | 130 | 16 | 76 | 7.45 | Y160M1-2/11 | Y160M1-2/11 | Y160M2-2/15 | ||||
80-200 | 1450 | A | 80 | 12 | 73 | 3.58 | Y112M-4/4 | Y132S-4/5.5 | Y132M-4/7.5 | 1.9 | 125 |
B | 75 | 11 | 73 | 3.08 | Y112M-4/4 | Y132S-4/5.5 | Y132M-4/7.5 | ||||
C | 65 | 9 | 73 | 2.18 | Y100L2-4/3 | Y100L2-4/3 | Y112M-4/4 | ||||
D | 60 | 6 | 73 | 1.34 | Y90L-4/1.5 | Y100L2-4/3 | Y112M-4/4 | ||||
2900 | A | 150 | 50 | 79 | 25.84 | Y200L1-2/30 | Y200L2-2/37 | Y250M-2/55 | 3.8 | 125 | |
B | 140 | 46 | 79 | 22.19 | Y200L1-2/30 | Y200L2-2/37 | Y225M-2/45 | ||||
C | 130 | 38 | 79 | 17.02 | Y160L-2/18.5 | Y200L1-2/30 | Y200L2-2/37 | ||||
D | 110 | 26 | 79 | 9.86 | Y160M1-2/11 | Y160M-2/15 | Y180M-2/18.5 | ||||
80-250 | 1450 | A | 95 | 20 | 78 | 6.63 | Y132M-4/7.5 | Y160M-4/11 | Y160L-4/15 | 1.3 | 125 |
B | 90 | 19 | 78 | 5.97 | Y132M-4/7.5 | Y160M-4/11 | Y160M-4/11 | ||||
C | 85 | 17 | 78 | 5.04 | Y132S-4/5.5 | Y132M-4/7.5 | Y160M-4/11 | ||||
D | 75 | 14 | 78 | 3.66 | Y132S-4/5.5 | Y132S-4/5.5 | Y132M-4/7.5 | ||||
E | 70 | 11 | 78 | 2.69 | Y100L2-4/3 | Y112M-4/4 | Y132S-4/5.5 | ||||
2900 | A | 190 | 80 | 80 | 51.72 | Y250M-2/55 | Y280S-2/75 | Y315S-2/110 | 5 | 125 | |
B | 180 | 75 | 80 | 45.94 | Y250M-2/55 | Y280S-2/75 | Y280M-2/90 | ||||
C | 170 | 70 | 80 | 40.49 | Y225M-2/45 | Y280S-2/75 | Y280M-2/90 | ||||
D | 150 | 55 | 80 | 28.07 | Y200L1-2/30 | Y225M-2/45 | Y250M-2/55 | ||||
E | 130 | 47 | 80 | 20.79 | Y180M-2/22 | Y200L2-2/37 | Y225M-2/45 | ||||
