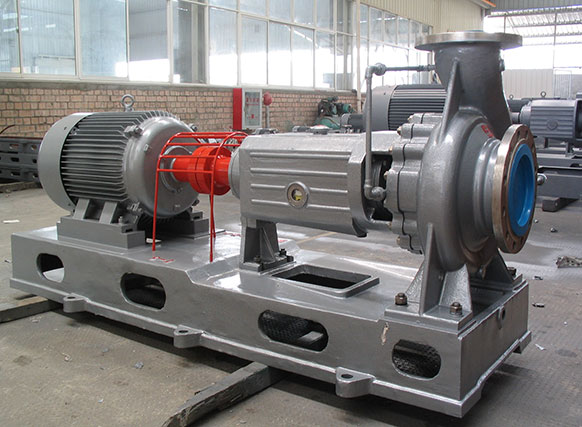

HCZ系列化工流程泵 / HCZ Series
規格 | 性能參數 | 配用電機（按照介質比重） | 汽蝕余量 m req | 進口法蘭直徑 | |||||||
轉速 r/min | 葉輪型式 | 流量 (m3/h) | 揚程 (m) | 效率 % | 軸功率 kw | γ=1.0 | γ=1.35 | γ=1.84 | |||
80-315 | 1450 | A | 100 | 32 | 72.5 | 12.02 | Y160L-4/15 | Y180M-4/18.5 | Y200L-4/30 | 1.3 | 125 |
B | 95 | 30 | 72.5 | 10.7 | Y160M-4/11 | Y160L-4/15 | Y180L-4/22 | ||||
C | 85 | 24 | 72.5 | 7.66 | Y160M-4/11 | Y160M-4/11 | Y160L-4/15 | ||||
D | 70 | 18 | 72.5 | 4.73 | Y132S-4/5.5 | Y132M-4/7.5 | Y160M-4/11 | ||||
2900 | A | 200 | 130 | 76.5 | 92.52 | Y315S-2/110 | Y315M1-2/132 | Y315L-2/180 | 5.5 | 125 | |
B | 180 | 125 | 76.5 | 80.07 | Y280M-2/90 | Y315S-2/110 | Y315M2-2/160 | ||||
C | 160 | 100 | 76.5 | 56.94 | Y280S-2/75 | Y280M-2/90 | Y315S-2/110 | ||||
D | 150 | 75 | 76.5 | 40.03 | Y225M-2/45 | Y250M-2/55 | Y280S-2/75 | ||||
80-400 | 1450 | A | 105 | 52 | 63 | 23.59 | Y200L-4/30 | Y225S-4/37 | Y225M-4/45 | 1.2 | 125 |
B | 100 | 50 | 63 | 21.6 | Y180L-4/22 | Y200L-4/30 | Y225M-4/45 | ||||
C | 90 | 44 | 63 | 17.11 | Y180M-4/18.5 | Y200L-4/30 | Y225S-4/37 | ||||
D | 80 | 38 | 63 | 13.14 | Y160L-4/15 | Y180M-4/18.5 | Y200L-4/30 | ||||
E | 75 | 30 | 63 | 9.72 | Y160M-4/11 | Y160L-4/15 | Y180M-4/18.5 | ||||
100-200 | 1450 | A | 115 | 11 | 80 | 4.31 | Y132S-4/5.5 | Y132M-4/7.5 | Y160M-4/11 | 1.2 | 125 |
B | 100 | 10 | 80 | 3.4 | Y112M-4/4 | Y132S-4/5.5 | Y132M-4/7.5 | ||||
C | 90 | 8 | 80 | 2.45 | Y100L-4/3 | Y112M-4/4 | Y132S-4/5.5 | ||||
D | 80 | 6 | 80 | 1.63 | Y100L1-4/2.2 | Y100L2-4/3 | Y112M-4/4 | ||||
2900 | A | 220 | 45 | 81 | 33.27 | Y200L2-2/37 | Y225M-2/45 | Y250M-2/55 | 4 | 125 | |
B | 200 | 40 | 81 | 26.89 | Y200L1-2/30 | Y200L2-2/37 | Y250M-2/55 | ||||
C | 180 | 30 | 81 | 18.15 | Y160L-2/18.5 | Y200L1-2/30 | Y200L2-2/37 | ||||
D | 150 | 25 | 81 | 12.6 | Y160M2-2/15 | Y160L-2/18.5 | Y200L1-2/30 | ||||
100-250 | 1450 | A | 130 | 20 | 75.5 | 9.37 | Y160M-4/11 | Y160L-4/15 | Y180M-4/18.5 | 1.8 | 125 |
B | 130 | 18 | 75.5 | 8.44 | Y160M-4/11 | Y160L-4/15 | Y180M-4/18.5 | ||||
C | 120 | 14 | 75.5 | 6.06 | Y132M-4/7.5 | Y160M-4/11 | Y160L-4/15 | ||||
D | 100 | 10 | 75.5 | 3.61 | Y112M-4/4 | Y132S-4/5.5 | Y132M-4/7.5 | ||||
2900 | A | 280 | 75 | 81.5 | 70.14 | Y280S-2/75 | Y132S-2/110 | Y315M1-2/132 | 4.5 | 125 | |
B | 250 | 70 | 81.5 | 58.45 | Y280S-2/75 | Y280M-2/90 | Y315S-2/110 | ||||
C | 230 | 55 | 81.5 | 42.25 | Y225M-2/45 | Y280S-2/75 | Y280M-2/90 | ||||
D | 200 | 40 | 81.5 | 26.72 | Y200L1-2/30 | Y225M-2/45 | Y250M-2/55 | ||||
100-315 | 1450 | A | 132 | 32 | 72 | 15.97 | Y180M-4/18.5 | Y180L-4/22 | Y200L-4/30 | 1.5 | 125 |
B | 120 | 30 | 72 | 13.61 | Y160L-4/15 | Y180M-4/18.5 | Y200L-4/30 | ||||
C | 100 | 26 | 72 | 9.83 | Y160M-4/11 | Y160L-4/15 | Y180M-4/18.5 | ||||
D | 90 | 21 | 72 | 7.15 | Y132M-4/7.5 | Y160M-4/11 | Y160M-4/15 | ||||
2900 | A | 270 | 135 | 75.5 | 131.4 | Y315M2-2/160 | Y315L-2/180 | Y3554-4/250 | 5 | 125 | |
B | 250 | 130 | 75.5 | 117.8 | Y315M1-2/132 | Y315M2-2/160 | Y3553-4/220 | ||||
C | 230 | 100 | 75.5 | 82.93 | Y280M-2/90 | Y315M1-2/132 | Y315M2-2/160 | ||||
D | 200 | 85 | 75.5 | 61.3 | Y280S-2/75 | Y280M-2/90 | Y315M1-2/132 | ||||
